TLB Biogas foam traps

TLB Biogas foam traps

- Foam removal
- Counterflow biogas scrubbing
- Automatic operation

TLB foam traps are fitted with anti-clogging full cone nozzles which spray water downward: the biogas stream enters at the bottom and it is washed in a countercurrent process in order to effectively separate the foam and prevent it from entering the biogas pipelines.
Water and foam are funnelled to the digester through a drain port located on the bottom of the unit.
Operation can be either manual or automatic (timed, or controlled by a foam level sensor installed on top of the unit).

Product features
  • High foam removal efficiency
  • Stainless steel construction
  • Full-cone nozzles for countercurrent water spraying

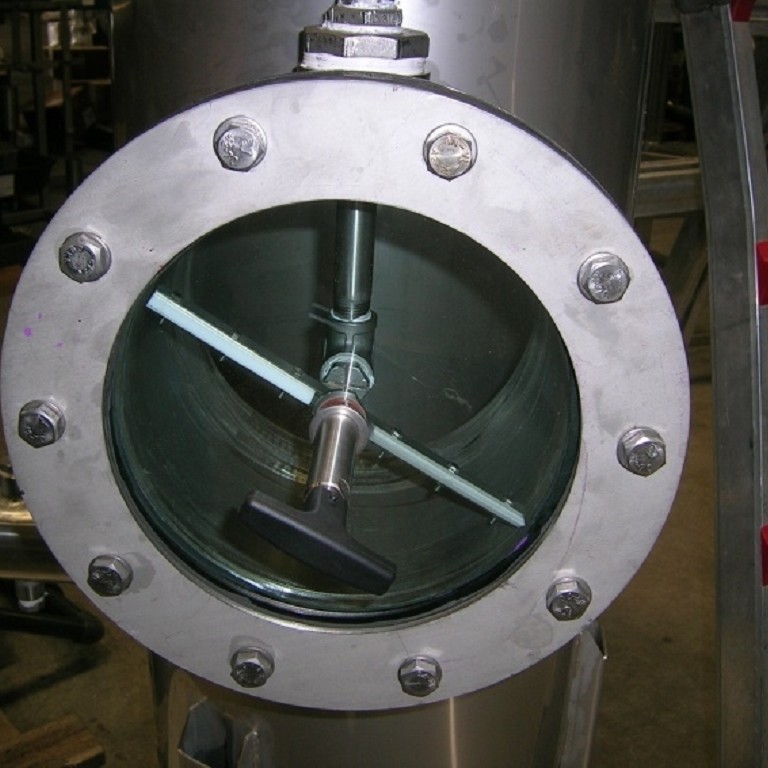

  • Side-mounted sightglass with wiper and cleaner nozzle
  • Bottom drainage port with water trap (50 mbar)

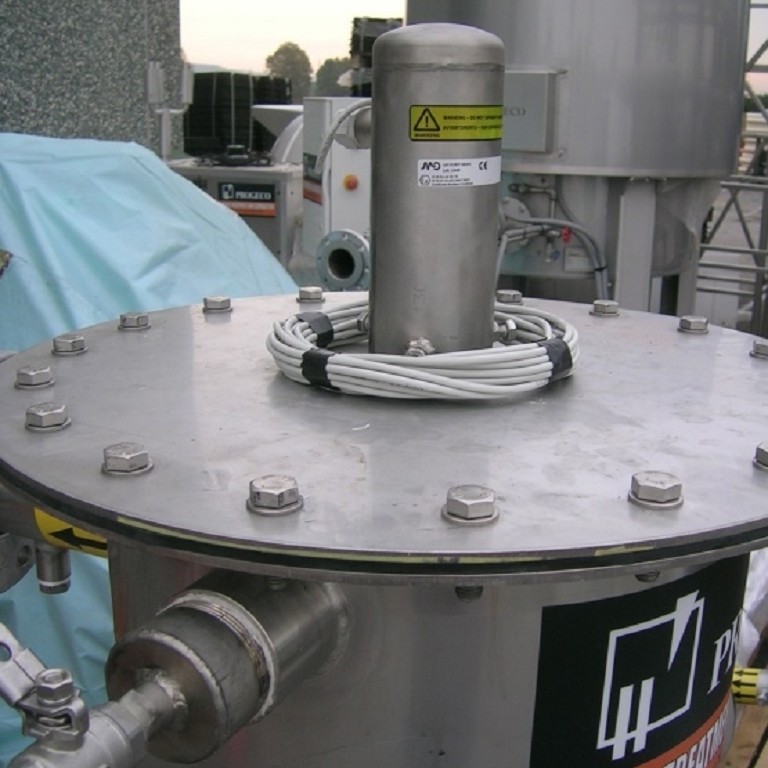

  • Foam detection sensor, for fully-automatic operation
