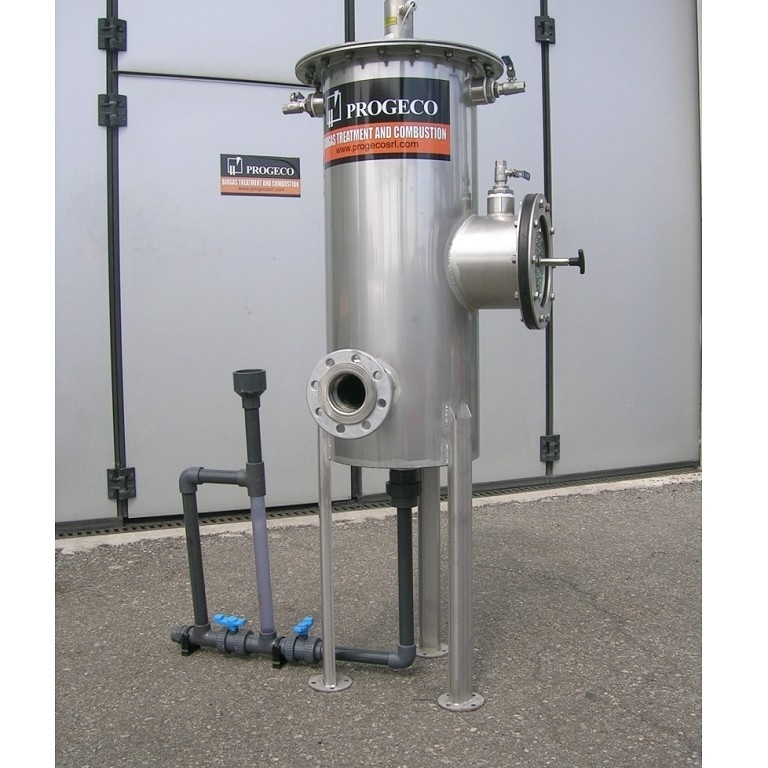

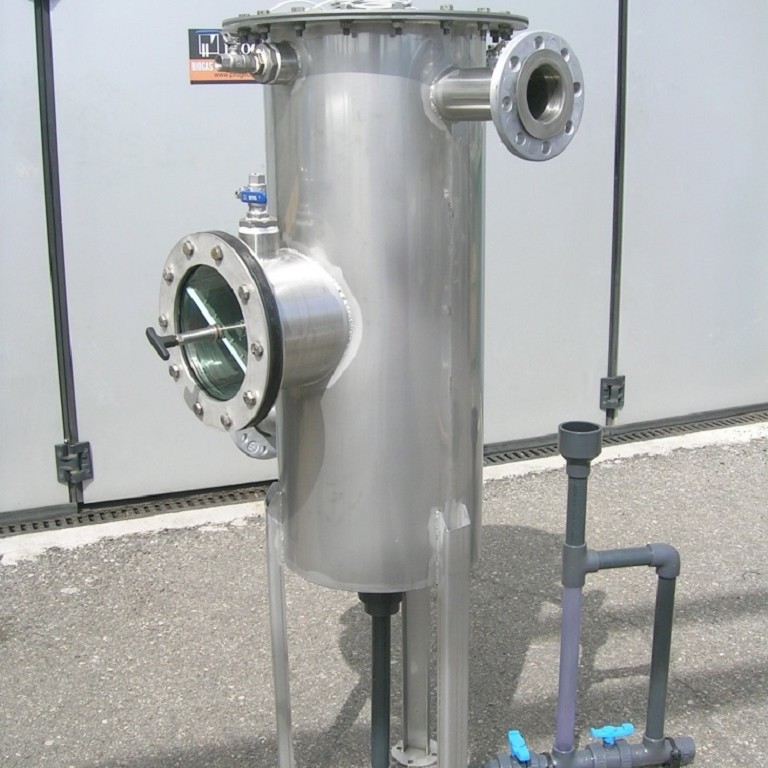

Biogas Foam Trap

TLB biogas foam traps are designed for coarse particles and foam removal.
TLB type is characterized by very simple design and operation requirements : foam is removed from the gas as it flow though the separator by subjecting the gas/foam mixture to a times directed spray of water inside the separator.
The foam is removed via drain connection.
Design of the washing chamber allows high separation efficiency.
Sight glass with wiper and nozzles and foam detection system are available as optional.

Product features

  • Foam trap – on-line
  • Stainless Steel AISI 304 construction
  • Counterflow washing chamber
  • Water sprinklers
  • High efficiency foam removal
  • Device for excess water disposal (water trap of 50 mbar)

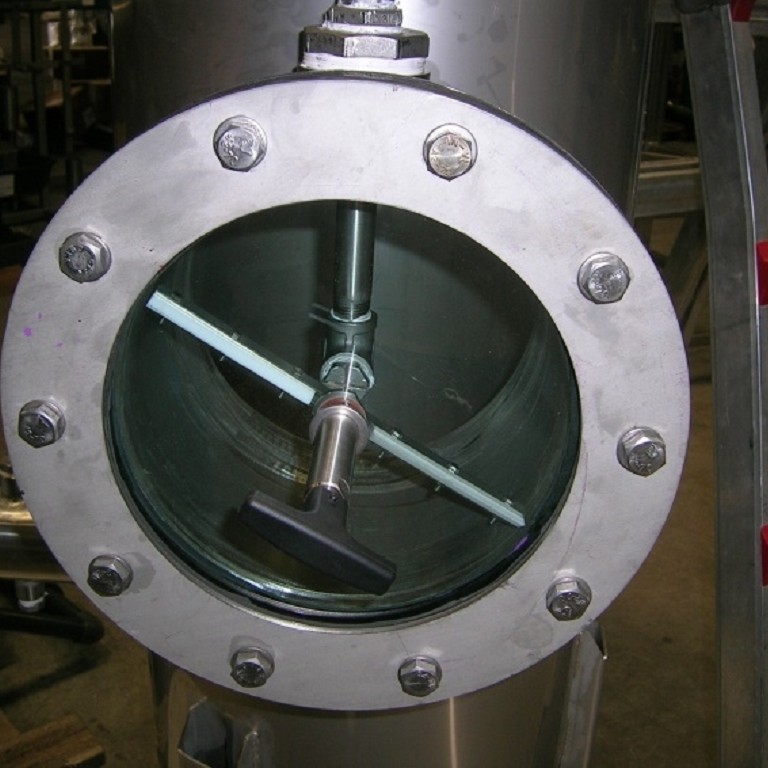

  • Sightglass with wiper and cleaning nozzle (option)
  • Fully automatic (timed) operation

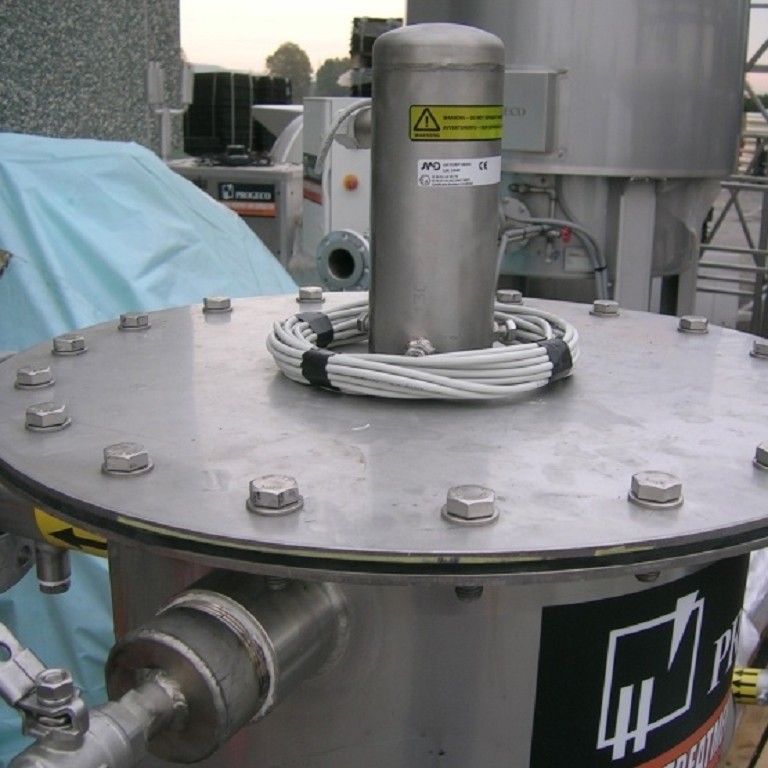

  • Foam detection sensor (option)
