FXP - Condensate/sediment traps
- Condensate / impurities removal
- Cyclonic separation
- Condensate water continuous disposal
Condensate/sediment traps FXP are designed to remove liquids and solids from biological gas, protecting downstream equipment from corrosion and clogging.

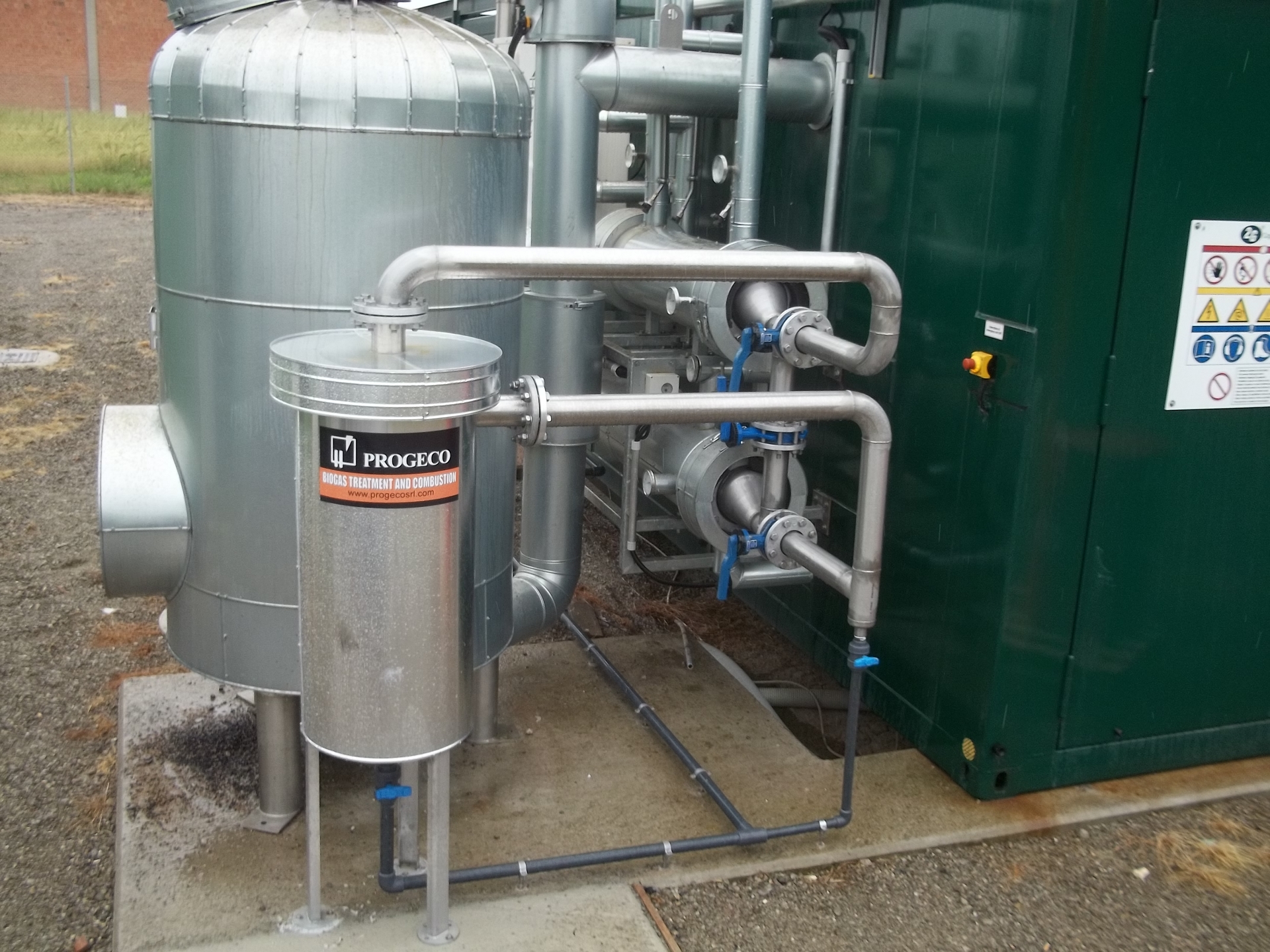

Installation is suggested also at "low point" of biogas mains, where formation of water pockets must be avoided in order to ensure regular gas flow.

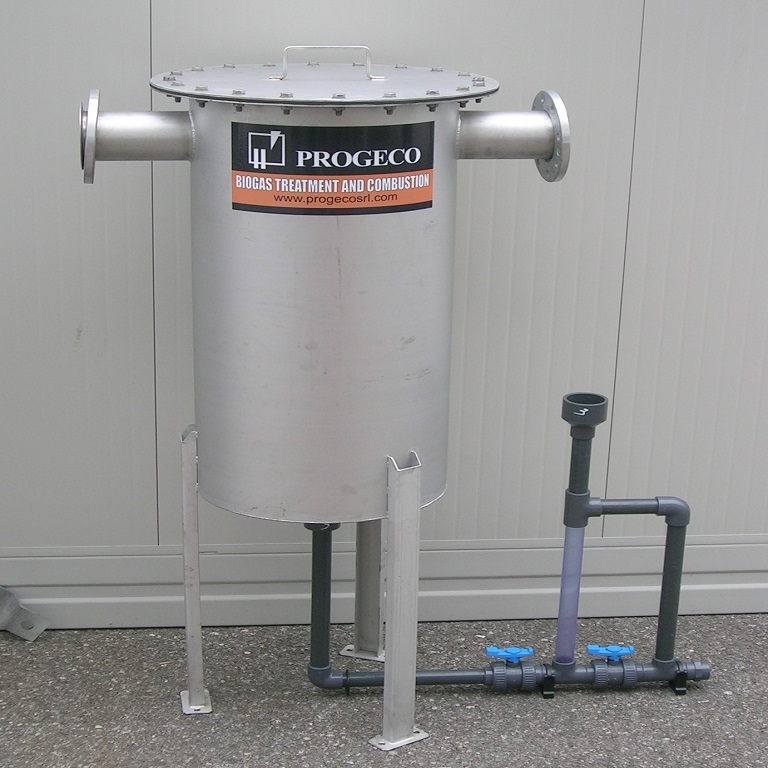

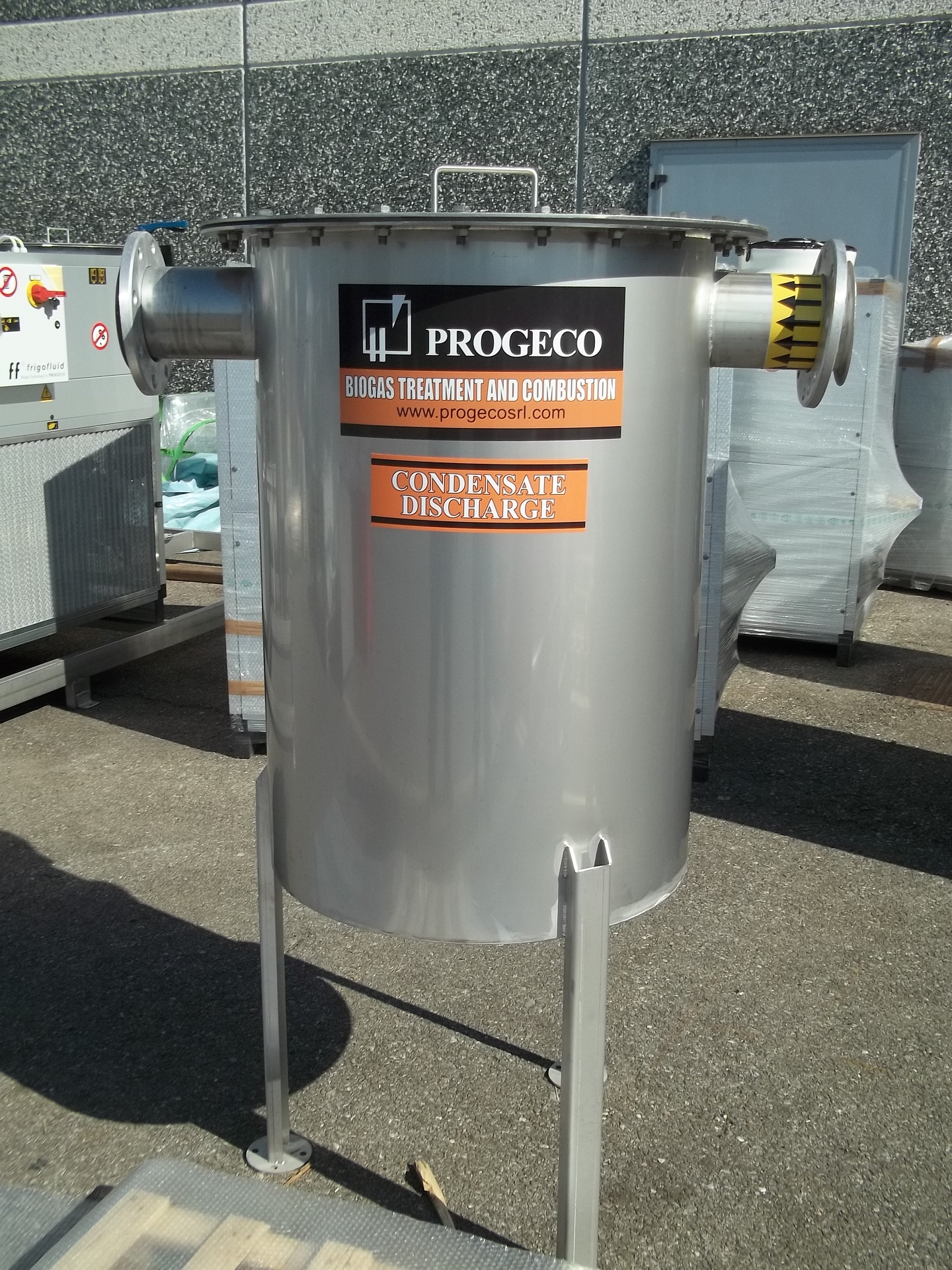

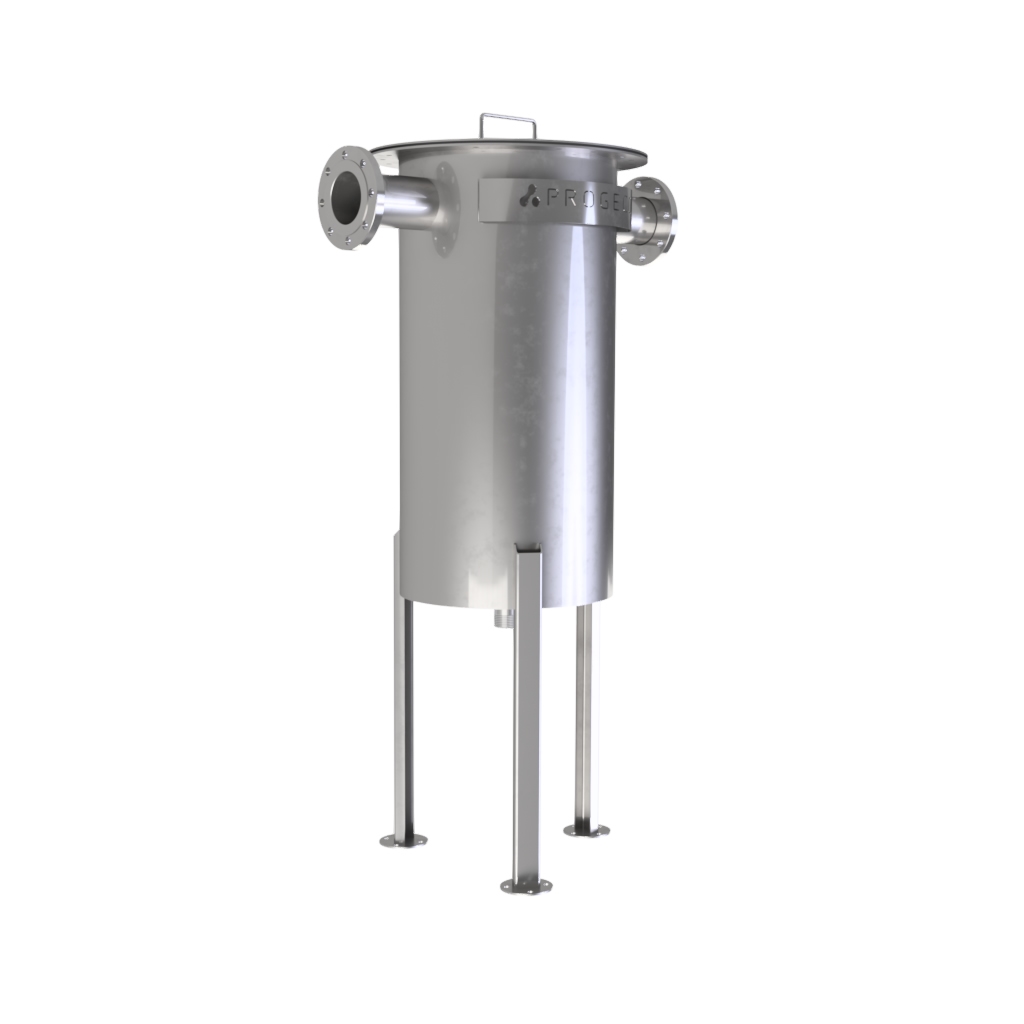

The unit consists of a stainless steel vessel with removable lid and flanged connections to process. Inlet/outlet design maximises the effect of cyclonic separation.
Condensate water is continuously disposed from the outlet located at the bottom of the vessel.
Product features
- Stainless steel construction
- Inspection lid
- Water trap (50 mbar) for automatic condensate drainage
- High condensate/sediment removal efficiency
- DXP version fitted with additional built-in demister stage, for flows > 1200 Nm3/hr
