Biogas flare stacks
>> type EMR
>> type T
>> type HE
>> type HT-E
>> type HT-S
Biogas filters
Biogas drying
Biogas desulphurization
Siloxane removal
Biogas analysis equipment
Digesters ancillary equipment

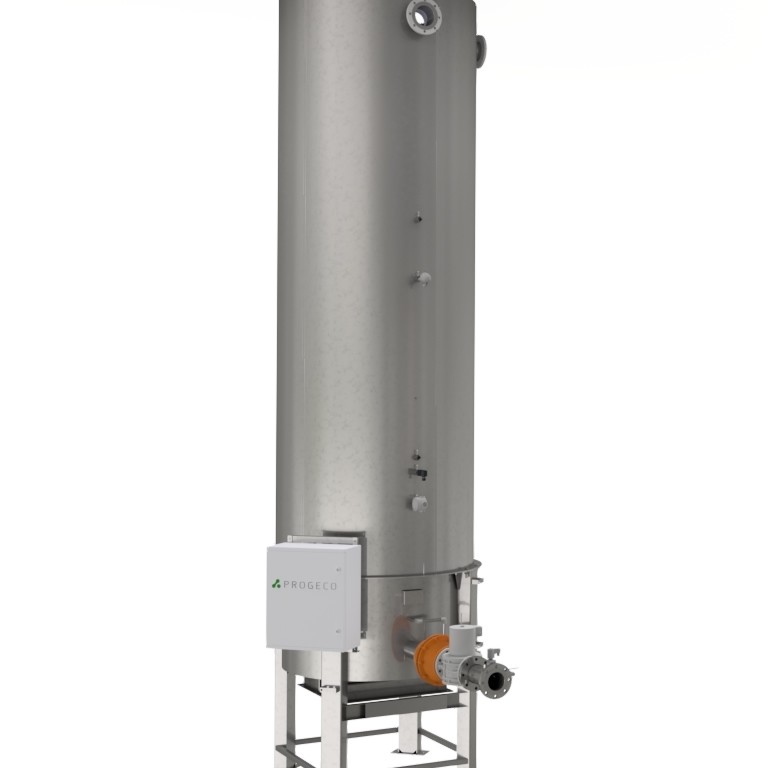

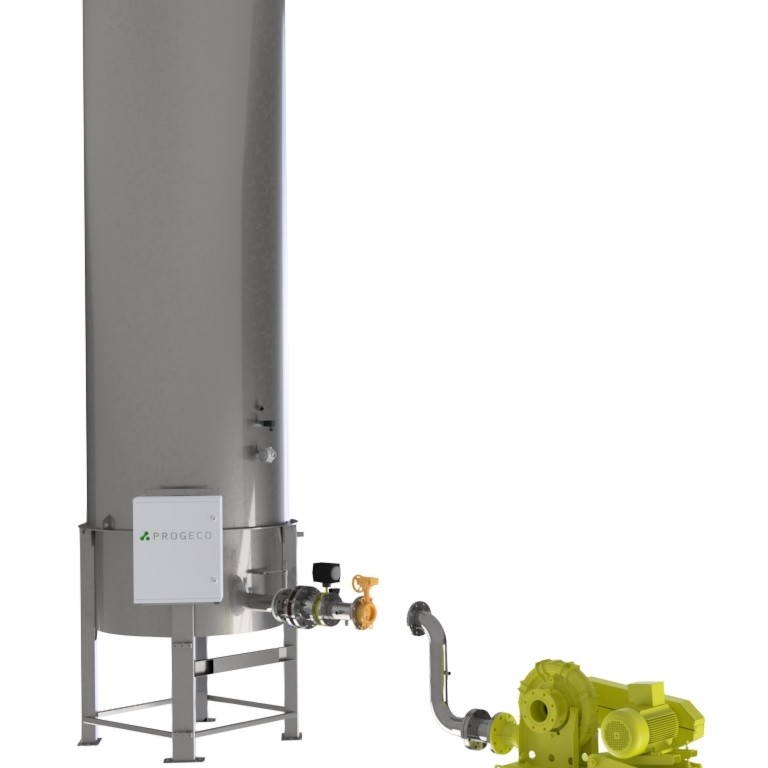

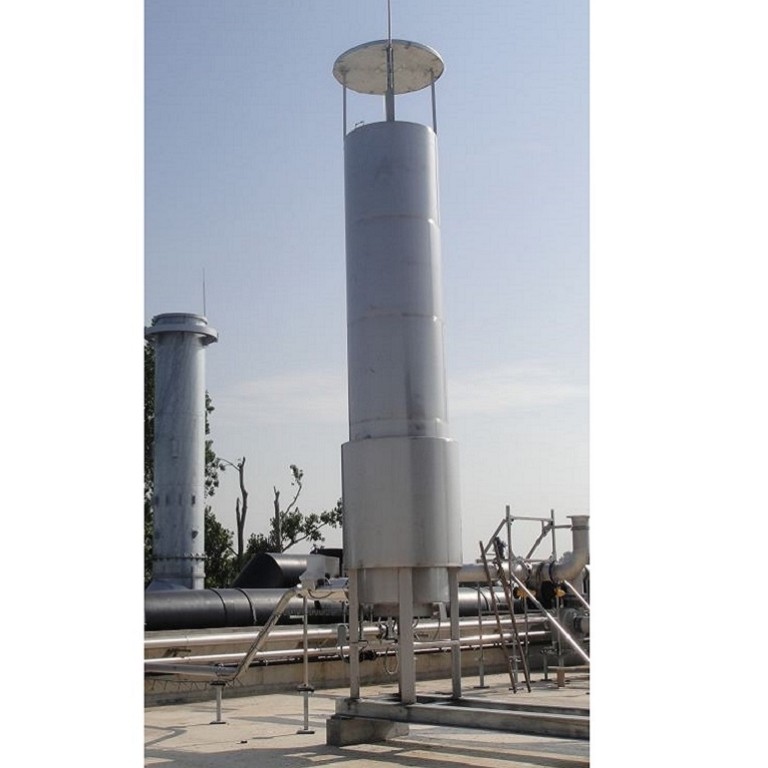

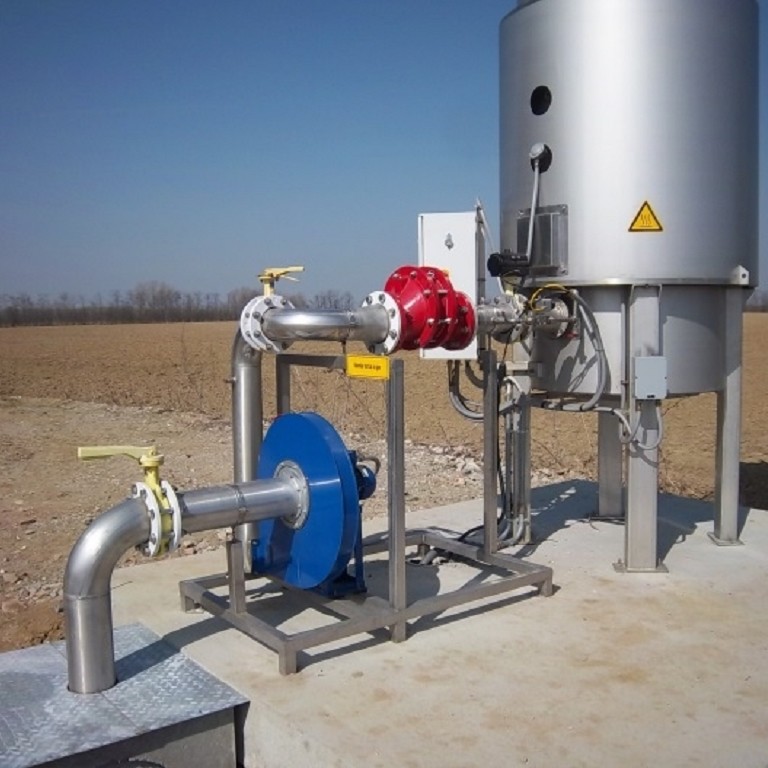

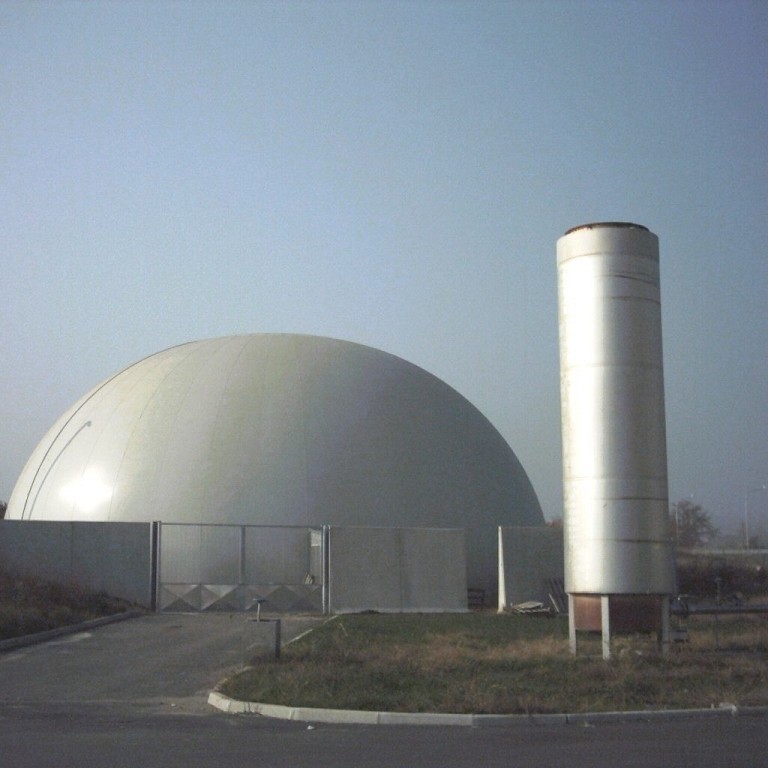

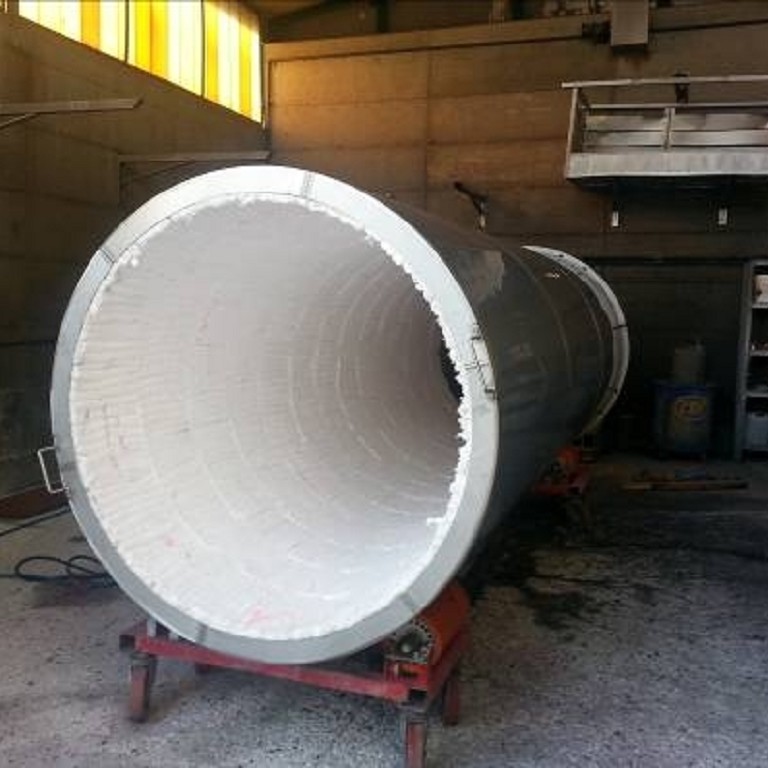

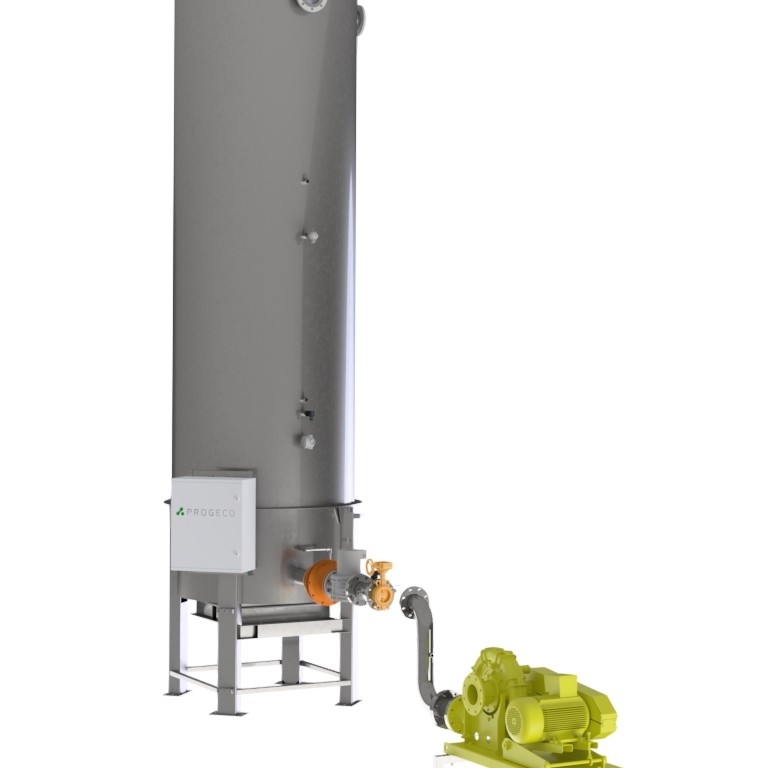

HT-E series consist of enclosed ground flares specifically developed for installation in biomass plants where biogas combustion at full-flow is not expected to be required continuously, instead only occasionally when, for instance, engines are being serviced. Combustion occurs inside the cylindrical chamber under a controlled environment, where air is admitted through a damper. This causes a higher destruction efficiency of the biogas and eliminates visible flame and sound to provide the proper solution in sensitive areas. Standard construction is full stainless steel, including the supporting frame. The flare stack is supplied complete with gas train, control panel, flame arrestor, safety devices, automatic air damper, thermocouple and combustion temperature display. Operation is fully automatic.
